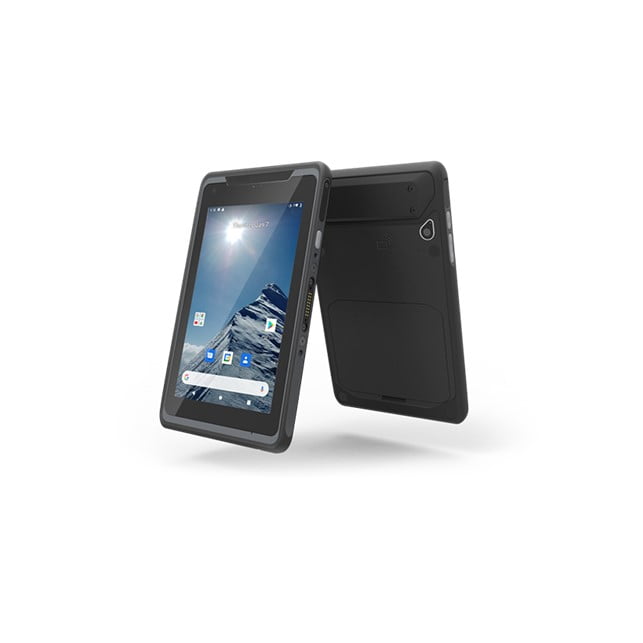

Advantech 8″ Industrial-Grade Tablet with Qualcomm® Snapdragon™ 660 Processor, Android 10 with GMS (AIM-75S-211S10)
Deskripsi
| Category | Attribute | Value |
| Display | Brightness (cd/m2) | 400cd/m2 |
| Display | Resolution | WUXGA 1920 x 1200 |
| Display | Type | 8″ IPS LCD |
| Storage | eMMC | 64GB |
| Storage | SD card | Micro SD (Supports up to 2 TB) |
| I/O Interface | Button | 1 x Power button, 2 x volume keys (up/down), 1 x programmable function key |
| I/O Interface | Extended I/O Port | 1 x AIM extension 14-pin pogo connector, 1 x USB 2.0, 1 x 2-wire UART, 5V/1A power |
| I/O Interface | Standard I/O Port | 1 x USB Type-C 3.0 , 1 x combo audio jack, 1 x SIM card reader, 1 x micro SD card reader |
| Touchscreen | Type | 10-point multi-touch PCAP touch control |
| Mechanical | Dimensions (W x H x D) | 240 x 142 x 14.5 mm/9.44 x 5.59 x 0.57 in |
| Mechanical | Weight | 600 g/1.32 lb |
| Multimedia | Speaker | 1 x Internal speakers (1.5W) |
| Camera | Front | 5 megapixel fixed-focus camera |
| Camera | Rear | 8 megapixel auto-focus camera with LED flash |
| Environment | Certifications | FCC,PTCRB, CE, CB, UL, TELEC, BSMI, NCC, CCC, SRRC, RCM, IC |
| Environment | IP Rating | IP65 |
| Environment | Operating Temperature | -10 ~ 50 °C/14 ~ 122 °F |
| Environment | Storage Temperature | -20 ~ 60 °C/-4 ~ 140 °F |
| Wireless Communication | NFC | 13.56 MHz, compatible with ISO 15693, ISO 14443A, ISO 14443B, Felica |
| Wireless Communication | WLAN/Bluetooth | IEEE 802.11 a/b/g/n/ac/k/v/r Bluetooth® v5.0 |
| Wireless Communication | WWAN | |
| Core | Memory | 4 GB LPDDR4x |
| Core | Operating System | Android 10 with GMS certification |
| Core | Processor | Qualcomm® Snapdragon™ 660 octa-core 2.2 GHz |
| Sensors | _ | Ambient Light Sensor, E-Compass, G-Sensor, Gyroscope |
| Power System | Battery | Swappable battery: 4900 mAh (minimum) 18.6 WHr Operating time: up to 12 hrs* Charging time: < 3 hrs* |
| Power System | Voltage Input | USB Type-C: 5V/3A, 9V/2A Dock pogo: 9V/2A |
Informasi Tambahan
| Brand |
Advantech |
|---|
