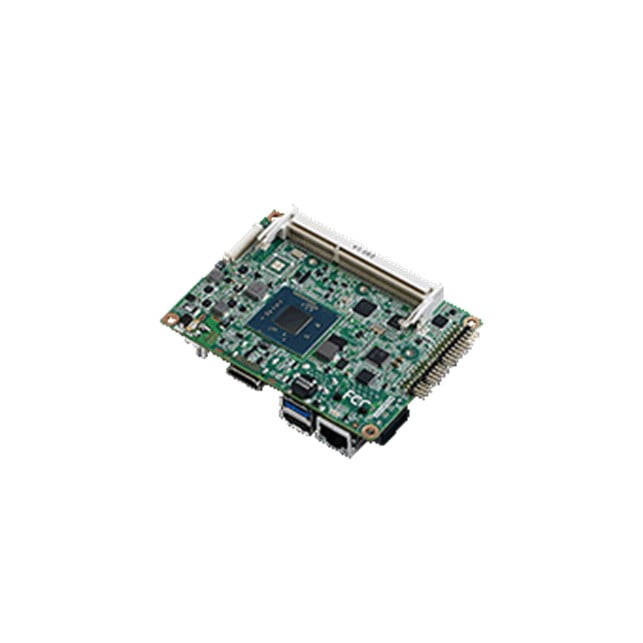

Advantech Intel® ATOM E3825 Pico-ITX SBC with DR3L, 24bit LVDS, VGA, 1GbE, Half-size Mini-PCIe, 4USB, 2COM, SMBus & mSATA-Wide Temp Version (-20~80C) (MIO-2263EZ-2GS3A1E)
Deskripsi
| Category | Attribute | Value |
| Display | Chipset | Intel® Atom SoC integrated |
| Display | Dual Display | Yes (VGA+LVDS or HDMI+LVDS) |
| Display | Graphic Engine | DirectX®11, Open GL3.0/ Open CL 1.1, OGL ES 2.0;Encode: H264, MPEG2/4, VC1, WMV9;Decode: H264, MPEG2 |
| Display | HDMI | – |
| Display | LVDS | Supports single channel 24-bit LVDS;Resolution: 1440 x 900 at 60Hz |
| Display | VGA | Up to 2560 x 1600 at 60Hz |
| Memory | Max. Capacity | 8 GB |
| Memory | Socket | 1 x 204-pin SODIMM (Support 1.35V DDR3L) |
| Memory | Technology | DDR3L 1066 MHz |
| Processor | BIOS | AMI EFI 64 Mbit |
| Processor | Chipset | Intel Atom SoC processor integrated |
| Processor | Core Number | 2 |
| Processor | CPU | Intel Atom E3825 |
| Processor | Frequency | 1.33 GHz |
| Processor | L2 Cache | 1 MB |
| Processor | Max Turbo Frequency | – |
| Storage | mSATA | 1 x half size mini PCIe slot |
| Storage | SATA | 1, up to 3Gb/s (300 MB/s) |
| Environment | Non-Operational Temperature | -40° C ~ 85° C and 60° C @ 95% RH non-condensing |
| Environment | Operational Temperature | -20 ~ 80° C (-4 ~ 176° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Power | Battery | Lithium 3 V / 210 mAH |
| Power | Power Consumption (Max) | 0.76 A @ 12 V (9.12 W) |
| Power | Power Consumption (Typical) | 0.59A @ 12V (7.08W) |
| Power | Power Management | ACPI |
| Power | Power Supply Voltage | Supports single 12V input, ± 10% |
| Power | Power Type | Single 12V DC power input (Supports DC power hot plug) |
| Power | Total peripheral power supply output | 5V @ 3A for CPU board and MIOe module totally, 12V @ 2A for MIOe module |
| Ethernet | Connector | RJ45 on rear I/O |
| Ethernet | Controller | Intel i210 |
| Ethernet | Speed | 10/ 100/ 1000 Mbps |
| Audio | CODEC | Realtek ALC888S |
| Audio | Connector | Line-in, Line out |
| Audio | Interface | High Definition Audio (HD) |
| Watchdog Timer | Output System reset, Programmable counter from 1 ~ 255 minutes/ seconds | |
| Expansion | Mini PCIe | 1 x Half-size |
| Expansion | MIOe | SMBus, 2 x USB2.0, LPC, 2 x PCIe x1, line out, DisplayPort/HDMI*, +5 Vsb/+12 Vsb power, Power On, Reset |
| Physical | Dimension (mm) | 100 x 72 mm (3.9″ x 2.8″) |
| Physical | Total Height | 33.63 mm |
| Physical | Weight | 0.46 kg (1.01 lb), weight of total package |
| Internal I/O | GPIO | 8-bit general purpose input/output |
| Internal I/O | Serial | 1 x RS-232 from COM2 (ESD protection for RS-232: Air gap ±15kV, Contact ±8kV); 1 x RS-232/422/485 from COM1 with auto-flow control |
| Internal I/O | SMBus | 1 |
| Internal I/O | USB | 2 x USB 2.0 |
| Rear I/O | DC Power Jack | 1 |
| Rear I/O | Ethernet | 1 |
| Rear I/O | USB | 1 x USB 3.0 compatible with USB 2.0;1 x USB 2.0 |
| Rear I/O | VGA | 1 |
