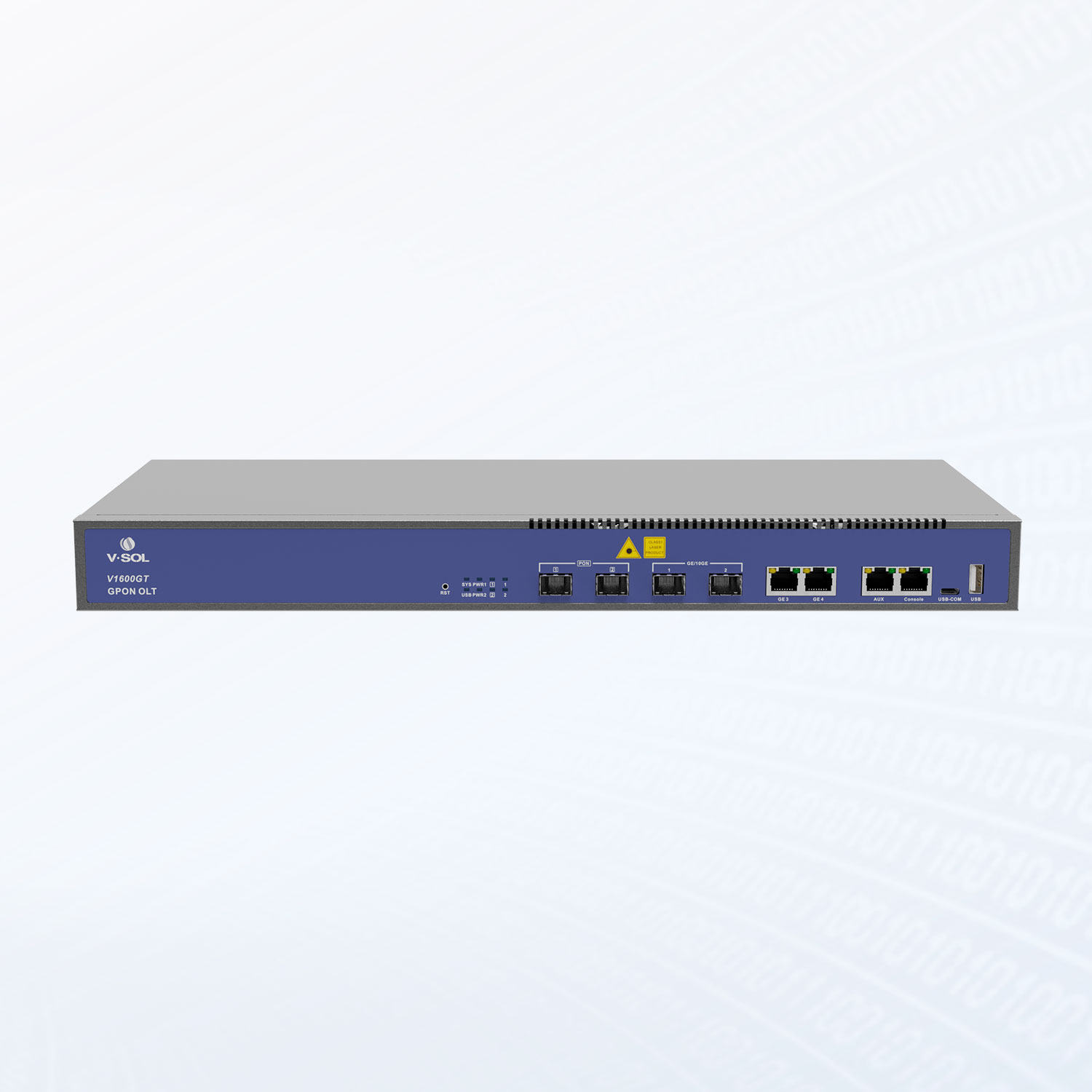

V1600GT V-SOL 2PON GPON OLT (AC+DC 48V) + 2x SFP C++++
Rp7.820.094
Deskripsi
Specifications
| Model | V1600GT |
| Uplink Port | QTY : 4 |
| RJ45(1G) : 2 | |
| SFP(1G)/SFP+(10G) : 2 | |
| GPON Port | QTY : 2 |
| Physical Interface : SFP Slots | |
| Supported PON module level : Class C++/Class C+++/Class C++++ |
|
| Max splitting ratio : 1:128 | |
| Management Port | 1*10/100/1000 BASE-T out-band port, 1*CONSOLE port, 1*USB-COM, 1*USB2.0 |
| Backplane Bandwidth (Gbps) | 208 |
| Port Forwarding Rate(Mpps) | 40.176 |
| PON Port Specification (Class C+++) | Transmission Distance : 20KM |
| PON port speed : Upstream 1.244Gbps Downstream 2.488Gbps |
|
| Wavelength TX 1490nm RX 1310nm |
|
| Connector : SC/UPC | |
| Fiber Type : 9/125μm SMF | |
| TX Power : +4.5~+10dBm | |
| Rx Sensitivity : ≤ -30dBm | |
| Saturation Optical Power : -12dBm | |
| Power supply | AC : Working Voltage Range: 100~240V, Rated Voltage: 110V/220V DC : Working Voltage Range: -36~-75V, Rated Voltage: -48V/-60V |
| Management Mode | WEB , Telnet , CLI |
| Working temperature | -20 ~ +60 C |
| Storage temperature | -40 ~ +70 C |
| Relative Humidity | 5 ~ 95% (Non-condensing) |
| Dimension (L*W*H) | 442 x 200 x 43.6 mm |
